2009-2018 Dodge RAM 1500 4.7L V8 2wd 7"/4.5" Lift Kit W/ FOX Shocks - MaxTrac K882470F

No reviews yet Write a review

$2,439.45

SKU:
K882470F
Estimated Shipping: Ships Next Monday
Weight:
169.00 LBS
Promotion Eligible
Eligible For In Cart Promotions
Free Shipping Eligible
Minimum Purchase Required
SKU:
K882470F
Estimated Shipping: Ships Next Monday
Weight:
169.00 LBS

2009-2018 Dodge RAM 1500 4.7L V8 2wd 7"/4.5" Lift Kit W/ FOX Shocks - MaxTrac K882470F

MaxTrac Suspension K882470F offers a 7/4.5" lift kit with FOX shocks for the 4.7L V8 2009-2018 Dodge Ram 1500 2WD platform. Designed from a single piece of ductile iron, the lift spindle provides strength with a bolt on application. The spindle is also e-coated for corrosion protection, and includes extended brake lines (DOT Approved). The lift kit also comes with 2.5 front lift coils for the V8 and FOX front shocks. For the rear lift MaxTrac has 3" rear lift coils, 1.5" rear coil spacers, track and sway bar brackets along with FOX shocks. Lift your truck the right way by ordering this high quality MaxTrac lift kit today! All your components will come backed by a limited lifetime warranty against defects in either materials or workmanship.

SPECIFICATIONS

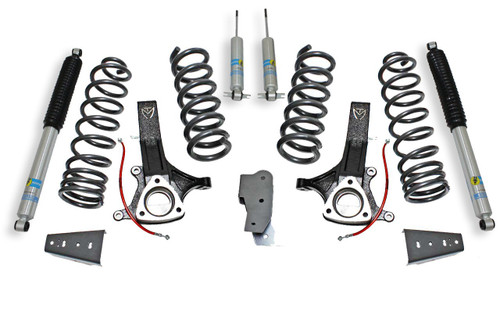

MaxTrac K882470F 7/4.5" Lift Kit Includes:

  • P/N: 702145 Front 4.5" Lift Spindles With Extended DOT Approved Brake Lines
  • P/N: 872170F 2.5" Front Lift Coils & Front FOX Shocks
    • P/N: 752120-8 2.5" Front Lift Coils
    • FOX Front Shocks
  • P/N: 902445F Rear 4.5" Lift Kit With FOX Shocks
    • P/N: 1628 1.5" Rear Coil Spacer
    • P/N: 902430F
      • Rear 3" Lift Coils
      • Track Bar Drop Down Bracket
      • Sway Bar Extension Brackets
      • FOX Rear Shocks

This MaxTrac Kit Will Lift Your Truck:

  • 7" In The Front
  • 4.5" In The Rear

Wheel and Tire Fitment:

  • Clears Up To 37" Tires With Correct Wheel and Tire Combination
  • Factory (Stock) Wheels and Tires Bolt Back On
  • 17" Wheel or Larger
    • With 5.5" Backspace or Less
Notes:

  • If RAM 1500 Has 2 Piece Drive Shaft MUST Use Carrier Bearing Spacer (612400)
  • Lift Kit With MaxTrac Shocks (K882470)
  • 4.7 V8 2wd ONLY
  • 5.7L Hemi V8 Lift Kit (K882471F)
  • Eco Diesel 6.5/4.5" Lift Kit (K882464F)
  • V6 Gas 6.5/4.5" Lift Kit (K882465F)
  • RAM 1500 Vary In Rake From Factory
  • Why 2WD Spindles Will NOT Work On 4WD CLICK HERE
  • Answers On Backspacing and Spindles / Knuckles CLICK HERE

Install Time -

  • 8 Hours

Fits:

  • 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Dodge RAM 1500 4.7L V8 2wd

MaxTrac Suspension Part # K882470F

Max Trac Suspension makes no warranty, expressed or implied, as to the merchantability, fitness for purpose, description, quality, productiveness, accuracy or any other matter with respect to every product, all such warranties being hereby specifically and expressly disclaimed by Max Trac. Max Trac may offer technical advice or assistance with regard to the products based on laboratory and/or field experience and customer understands and agrees that such advice represents only good faith opinions and does not constitute a warranty or guarantee. The sole and express warranty provided by Max Trac is to warrant that the products sold as listed comply with Max Trac’s specification at the date and time of manufacture. Max Trac makes no warranty that such products shall meet such specification at any time after installation of products. Use of such product is specifically not warranted, and Max Trac specifically excludes from this express warranty parts subject to normal wear and tear after one year, finish after one year, damage resulting from failure to follow recommendations in installation manuals, competition or off-road use, and damages caused by aftermarket products. Max Trac’s liability and customer’s exclusive remedy for any breach of this limited express warranty is limited to repair, replacement, or refund at Max Trac’s option and in Max Trac’s sole discretion. There are no warranties which extend beyond the description on the face hereof. Our limited lifetime warranty excludes the following items: bushings, bump stops, ball joints, tie rod ends, rod end/heim joints, and shock absorbers. These parts are subject to immediate wear and tear and are not considered defective when worn. They are warranted for twelve (12) months from the date of purchase only for defects in workmanship. This Max Trac warranty is void if (1) the vehicle is not aligned after kit installation, (2) proper maintenance is not routinely performed, (3) the Max Trac products are misused or abused in any way in either installation or service, or (4) the products are used in a way that violates federal, state, or local law or regulation in any respect. Max Trac is not responsible for vehicle compatibility with other aftermarket products. Warranty coverage does not include consumer opinions regarding ride comfort, fitment and design after product installation. Max Trac reserves the right to change, modify or cancel this warranty without prior notice. FOX LIMITED WARRANTY- Limited one (1) year warranty on suspension products.This warranty is only applicable to FOX suspensions purchased new from an authorized FOX source and is made only to the original retail owner of the new FOX suspension product and is not transferable to subsequent owners. This warranty is void if the FOX suspension product is subjected to abuse, neglect , improper or unauthorized repair, improper or unauthorized service or maintenance, alteration, modification, accident or other abnormal, excessive, or improper use. Should it be determined by FOX in its sole and final discretion, that a FOX suspension product is covered by this warranty, it will be repaired or replaced, by a comparable model, at FOX's sole option, which will be conclusive and binding. This limited warranty does not apply to normal wear and tear, malfunctions or failures that result from abuse, improper assembly, neglect, alteration, improper maintenance, crash, misuse or collision. FOX Factory, Inc., a California corporation having offices at 130 Hangar Way, Watsonville, CA 95076 ("FOX”), makes the following LIMITED WARRANTY with respect to its suspension products.
