2014-2016 GMC Sierra 1500 4wd W/ Cast Steel Suspension 7/5" Lift Kit W/ MaxTrac Shocks - MaxTrac K941570

Hover over image to zoom

  • 2014-2016 GMC Sierra 1500 4wd W/ Cast Steel Suspension 7/5" Lift Kit W/ MaxTrac Shocks - MaxTrac K941570
  • 2014-2016 GMC Sierra 1500 4wd W/ Cast Steel Suspension 7/5" Lift Kit W/ MaxTrac Shocks - MaxTrac K941570
MaxTrac Suspension
RRP: $1,665.83
$1,438.67 (You save $227.16)
195.00 LBS
In Stock - Ships Same Day
Free Shipping

 Product Description

2014-2016 GMC Sierra 1500 4wd W/ Cast Steel Suspension 7/5" Lift Kit W/ MaxTrac Shocks - MaxTrac K941570

Hot New Product Alert!

The 100% all new MaxTrac K941570 7/5" lift kit with shocks for your 2014-2016 GMC Sierra 1500 4wd with cast steel suspension is officially here. MaxTrac answered the call for a big 7" lift kit for the 4wd trucks. This kit keeps the upper control arms in their stock location and extended ductile iron knuckles span the distance to the dropped lower control arms to achieve a full 7" of lift. To keep costs down, we utilize the factory struts with our strut spacers. Rear kit includes 5" blocks with U-bolts, along with extended length shocks. This kit will fit up to 35" tall tires on a 20x9" wheel with a maximum of 5" back spacing. Install time is approx. 6 hours. This kit is priced ultra competitive and with free same day shipping you can not go wrong.

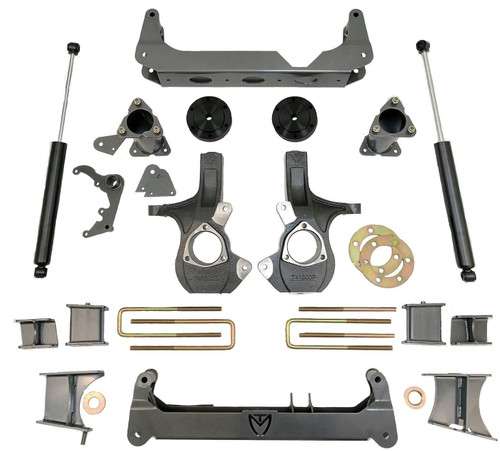

MaxTrac 7/5" Lift Kit Includes:

  • P/N: 941370-1 Steering Knuckles
    • Lifted Ductile Steel Spindles
  • P/N: 941370-2 Subframes and Rear Shocks
    • Front Drop Down Lift Crossmember
    • Rear Drop Down Lift Crossmember
    • Rear MaxTrac Shocks
  • P/N: 941570-3 Brackets and Hardware
    • Front Strut Spacers
    • CV Axle Spacers
    • Sway Bar Drop Down Brackets
    • Rear 5" Lift Blocks and U-Bolts
    • Hardware Kit
  • Optional Kicker Braces (9413KB)


  • Upper Control Arms Stay In Stock Location
  • Full 7" Front Lift With 5" Rear Lift
  • Full 7" Ductile Steel Spindles
  • Clears 35" Tires On 20 x 9 With Correct Wheel and Tire Combination
  • Should Install In 6 Hours
  • Prior To Installation Measuring Is Required When Selecting Wheel and Tire Combination
  • Trimming May Be Required For Optimal Fender Well Clearance
  • 4WD ONLY
  • Fits Cast Steel Suspension Models ONLY

Install Time -

  • 8 Hours


  • 2014, 2015, 2016 GMC Sierra 1500 4wd W/ Cast Steel Suspension

Installation Instructions Click HERE

MaxTrac Suspension Part # K941570.1

 Warranty Information

Max Trac Suspension makes no warranty, expressed or implied, as to the merchantability, fitness for purpose, description, quality, productiveness, accuracy or any other matter with respect to every product, all such warranties being hereby specifically and expressly disclaimed by Max Trac. Max Trac may offer technical advice or assistance with regard to the products based on laboratory and/or field experience and customer understands and agrees that such advice represents only good faith opinions and does not constitute a warranty or guarantee. The sole and express warranty provided by Max Trac is to warrant that the products sold as listed comply with Max Trac’s specification at the date and time of manufacture. Max Trac makes no warranty that such products shall meet such specification at any time after installation of products. Use of such product is specifically not warranted, and Max Trac specifically excludes from this express warranty parts subject to normal wear and tear after one year, finish after one year, damage resulting from failure to follow recommendations in installation manuals, competition or off-road use, and damages caused by aftermarket products. Max Trac’s liability and customer’s exclusive remedy for any breach of this limited express warranty is limited to repair, replacement, or refund at Max Trac’s option and in Max Trac’s sole discretion. There are no warranties which extend beyond the description on the face hereof.
Our limited lifetime warranty excludes the following items: bushings, bump stops, ball joints, tie rod ends, rod end/heim joints, and shock absorbers. These parts are subject to immediate wear and tear and are not considered defective when worn. They are warranted for twelve (12) months from the date of purchase only for defects in workmanship.
This Max Trac warranty is void if (1) the vehicle is not aligned after kit installation, (2) proper maintenance is not routinely performed, (3) the Max Trac products are misused or abused in any way in either installation or service, or (4) the products are used in a way that violates federal, state, or local law or regulation in any respect. Max Trac is not responsible for vehicle compatibility with other aftermarket products. Warranty coverage does not include consumer opinions regarding ride comfort, fitment and design after product installation.
Max Trac reserves the right to change, modify or cancel this warranty without prior notice.
