1997-2003 Ford F-150 2wd 5.5" Lift Kit - MaxTrac K883553

3 reviews Write a review

$947.75

SKU:
K883553
Estimated Shipping: Ships Same Day
Weight:
121.00 LBS
Promotion Eligible
Eligible For In Cart Promotions
Free Shipping Eligible
Minimum Purchase Required
SKU:
K883553
Estimated Shipping: Ships Same Day
Weight:
121.00 LBS

1997-2003 Ford F-150 2wd 5.5" Lift Kit - MaxTrac K883553

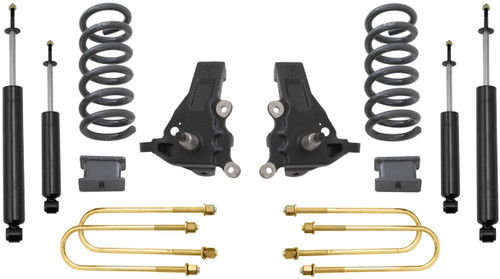

MaxTrac K883553 offers a 5.5/3" lift kit for your 2wd 1997-2003 Ford F150. The MaxTrac Lift Kit comes with our 3.5" ductile iron spindle 2" front lift coils, and MaxTrac shocks for the front. The rear of the lift has a 3" fabricated lift block, Ubolts, and MaxTrac rear shocks.

SPECIFICATIONS

MaxTrac 5.5/3" Lift Kit Includes:
  • P/N: 703535 Front 3.5" Lift Spindles
  • P/N: 753520-6 Front 2" Lift Coils (For V6 Engine)
  • P/N: 753520-8 Front 2" Lift Coils (For V8 Engine)
  • P/N: 810030 Rear 3" Fabricated Lift Blocks
  • P/N: 910205 U-Bolts For Lift Blocks
  • P/N: 1650SL Front MaxTrac Shocks
  • P/N: 2650SL Rear MaxTrac Shocks
Wheel and Tire Fitment:
  • 16" Wheel or Larger With 4.625" Backspacing Or Less
  • Increased Track Width +.5" Per Side
  • Clear 35" Tires On Narrower Wheels
  • Clear 33" Tires On Wider Wheels
  • 15" Stock (Factory) Wheels Will NOT Work
Notes:
  • 2WD ONLY
  • For 2004 Model Year Will ONLY Fit Heritage Edition (97-03 Body Style)
  • Prior To Installation Measuring Required When Selecting Wheel and Tire Combination
  • Trimming Might Be Required For Optimal Fender Well Clearance
  • Why 2WD Spindles Will NOT Work On 4WD CLICK HERE
  • Answers On Backspacing and Spindle / Knuckles CLICK HERE
  • Please Specify Engine Size When Ordering
  • May Require Upper Control Arm For Alignment & Suspension Travel
    • MaxTrac Recommend BTS Fab Upper Arm

Fits:

  • 1997, 1998, 1999, 2000, 2001, 2002, 2003 Ford F-150 2wd V6 & V8

MaxTrac Suspension Part #K883553

Max Trac Suspension makes no warranty, expressed or implied, as to the merchantability, fitness for purpose, description, quality, productiveness, accuracy or any other matter with respect to every product, all such warranties being hereby specifically and expressly disclaimed by Max Trac. Max Trac may offer technical advice or assistance with regard to the products based on laboratory and/or field experience and customer understands and agrees that such advice represents only good faith opinions and does not constitute a warranty or guarantee. The sole and express warranty provided by Max Trac is to warrant that the products sold as listed comply with Max Trac’s specification at the date and time of manufacture. Max Trac makes no warranty that such products shall meet such specification at any time after installation of products. Use of such product is specifically not warranted, and Max Trac specifically excludes from this express warranty parts subject to normal wear and tear after one year, finish after one year, damage resulting from failure to follow recommendations in installation manuals, competition or off-road use, and damages caused by aftermarket products. Max Trac’s liability and customer’s exclusive remedy for any breach of this limited express warranty is limited to repair, replacement, or refund at Max Trac’s option and in Max Trac’s sole discretion. There are no warranties which extend beyond the description on the face hereof. Our limited lifetime warranty excludes the following items: bushings, bump stops, ball joints, tie rod ends, rod end/heim joints, and shock absorbers. These parts are subject to immediate wear and tear and are not considered defective when worn. They are warranted for twelve (12) months from the date of purchase only for defects in workmanship. This Max Trac warranty is void if (1) the vehicle is not aligned after kit installation, (2) proper maintenance is not routinely performed, (3) the Max Trac products are misused or abused in any way in either installation or service, or (4) the products are used in a way that violates federal, state, or local law or regulation in any respect. Max Trac is not responsible for vehicle compatibility with other aftermarket products. Warranty coverage does not include consumer opinions regarding ride comfort, fitment and design after product installation. Max Trac reserves the right to change, modify or cancel this warranty without prior notice.

Reviews & Questions

3 Reviews Hide Reviews Show Reviews

  • 5
    Would have been better

    Posted by Jameson M Boyd on Apr 01, 2021

    this is a really awesome kit. Would have been better if I would've received the u bolts that was supposed to come with. But a quick run to the store and it was taken care of. $40 for the u bolts

  • 5
    Totally Changed the Look of my Truck!

    Posted by Unknown on Jan 21, 2018

    Great product so far. The ride quality has seemed to improve since installing this product. I would recommend buying a steering stabilizer to go along with this lift. Overall is a great look that it a real eye catcher.

  • 5
    2000 Ford F-150 2wd

    Posted by Dave on Jul 12, 2017

    Excellent product. . . .well designed and built very solid. I installed this product along with with completly new upper / lower control arms and tie rod ends. Install went very smooth and was straight forward. I have since ordered the 4 inch lift blocks to add a little bit more height to the rear of the truck. The job can be done with basic hand tools. A big vice or a press can come in handy when installing inserts in rear shocks. Other than that a outstanding kit. Really makes the truck.
