2001-2009 Ford Ranger 2wd Coil Suspension (Non Stabilitrak) 4"/2" Lift Kit - MaxTrac K883032

Hover over image to zoom

  • 2001-2009 Ford Ranger 2wd Coil Suspension (Non Stabilitrak) 4"/2" Lift Kit - MaxTrac K883032
MaxTrac Suspension
$462.76
SKU:
K883032
Weight:
54.00 LBS
Availability:
In Stock - Ships Same Day
Shipping:
Free Shipping

 Product Description

2001-2009 Ford Ranger 2wd Coil Suspension (Non Stabilitrak) 4"/2" Lift Kit - MaxTrac K883032

MaxTrac K883032 offers a 4/2" lift kit for your non stabilitrak 2wd 2001-2009 Ford Ranger. MaxTrac Suspension has a 4" of lift on the 2WD Ford Ranger lift spindles. These maintain stock like geometry and keep the truck riding smooth, while increasing track width by half an inch. This moderate lift height provides enough clearance for much bigger wheels and tires for either a more aggressive street look, or the basis for some off-trail fun. These heavy duty 4" lift spindles are a true bolt on piece which replaces the stock spindles, and exceed OEM specifications. Ductile Iron construction make these bullet proof.

SPECIFICATIONS

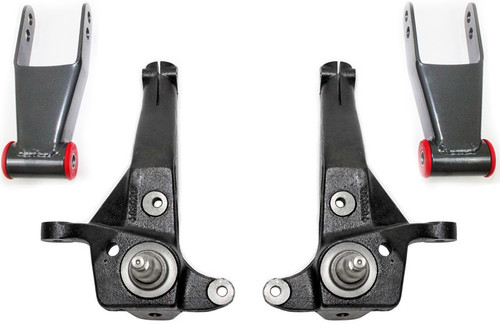

MaxTrac 4/2" Lift Kit Includes:

  • P/N: 703030B Front 4" Lift Spindles
  • P/N: 410520 Rear 2" Lift Shackles
Wheel and Tire Fitment:

  • 15" Wheel or Larger With 3.75" Backspace or Less
  • Increased Track Width +0.5"
  • Clears 31" Tires With the Correct Wheel and Tire Combination
Notes:

  • 2WD ONLY
  • Will NOT Work On Stabilitrak
  • Prior To Installation Measuring Required When Selecting Wheel and Tire Combination
  • Trimming Might Be Required For Optimal Fender Well Clearance
  • Why 2WD Spindles Will NOT Work On 4WD CLICK HERE
  • Answers On Backspacing and Spindle / Knuckles CLICK HERE

Fits:

  • 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009 Ford Ranger 2wd
MaxTrac Suspension Part #K883032

 Warranty Information

Max Trac Suspension makes no warranty, expressed or implied, as to the merchantability, fitness for purpose, description, quality, productiveness, accuracy or any other matter with respect to every product, all such warranties being hereby specifically and expressly disclaimed by Max Trac. Max Trac may offer technical advice or assistance with regard to the products based on laboratory and/or field experience and customer understands and agrees that such advice represents only good faith opinions and does not constitute a warranty or guarantee. The sole and express warranty provided by Max Trac is to warrant that the products sold as listed comply with Max Trac’s specification at the date and time of manufacture. Max Trac makes no warranty that such products shall meet such specification at any time after installation of products. Use of such product is specifically not warranted, and Max Trac specifically excludes from this express warranty parts subject to normal wear and tear after one year, finish after one year, damage resulting from failure to follow recommendations in installation manuals, competition or off-road use, and damages caused by aftermarket products. Max Trac’s liability and customer’s exclusive remedy for any breach of this limited express warranty is limited to repair, replacement, or refund at Max Trac’s option and in Max Trac’s sole discretion. There are no warranties which extend beyond the description on the face hereof.
Our limited lifetime warranty excludes the following items: bushings, bump stops, ball joints, tie rod ends, rod end/heim joints, and shock absorbers. These parts are subject to immediate wear and tear and are not considered defective when worn. They are warranted for twelve (12) months from the date of purchase only for defects in workmanship.
This Max Trac warranty is void if (1) the vehicle is not aligned after kit installation, (2) proper maintenance is not routinely performed, (3) the Max Trac products are misused or abused in any way in either installation or service, or (4) the products are used in a way that violates federal, state, or local law or regulation in any respect. Max Trac is not responsible for vehicle compatibility with other aftermarket products. Warranty coverage does not include consumer opinions regarding ride comfort, fitment and design after product installation.
Max Trac reserves the right to change, modify or cancel this warranty without prior notice.

Vendors Other Products

 Product Reviews

  1. Exactly as advertised

    Posted by on

    Very easy install, one thing I didn’t notice in the product description is that you will mostly likely have to trim your lower control arm. Other than that great product. Have about 1000 miles on the spindles now and it’s great!
